Western Razor blade System - Winter Equipment Company
Sale!

WEAR FACTOR

10x
Longer than
Steel
Satisfaction Guarantee
Blade life
Steel
Razor Arrow
Clear Selections
7'6"
8'
8'6"
9'
10'
Original price was: $1,688.90 – $2,480.00.Current price is: $1,435.57 – $2,108.00.

Features

Delivery icon
  • One Part Number
  • Fastest Delivery Time
Shipping icon
  • FREE Shipping when you buy online
Garage icon
  • Fewer Blade Changes
  • More Time on the Road
Hardware icon
  • Includes Hardware
  • Includes Plow Guards
Labor icon
  • Lower Labor Cost
Injury icon
  • Less Workplace Injury

Information

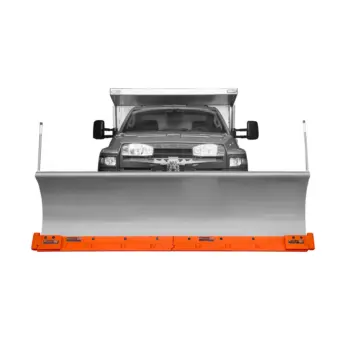

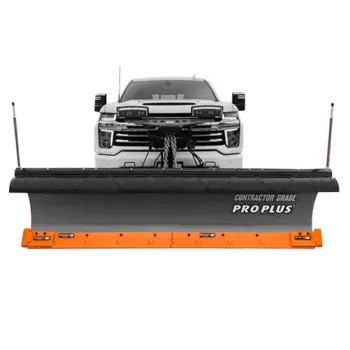

For Western® PRO PLUS® Snowplows

Winter Equipment brings the advanced technology we have pioneered in the municipal market to snowplowing contractors of all sizes — from single truck owners to companies with an entire fleet of plows. With our Razor® Arrow Straight Blade System for snowplows, you benefit from our years of experience with big plows.

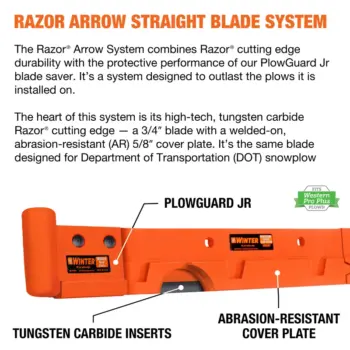

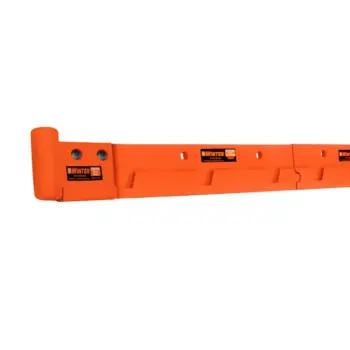

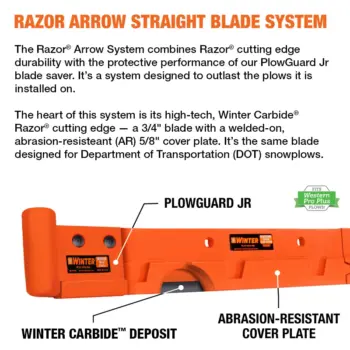

The Razor® Arrow System combines Razor® cutting edge durability with the protective performance of our PlowGuard Jr. It’s a system designed to outlast the plows it is installed on.

  • Stops Premature Wear
  • Super-Fast Payback
  • High-Strength Hardware

Fitment Charts Dealer Locator

Description

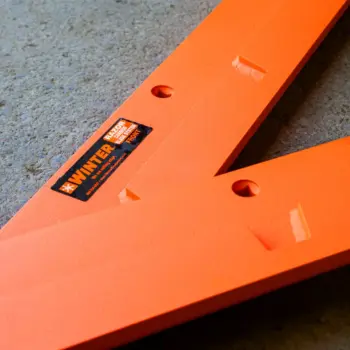

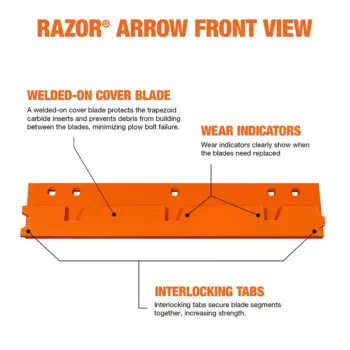

Razor® Segmented Center Blade

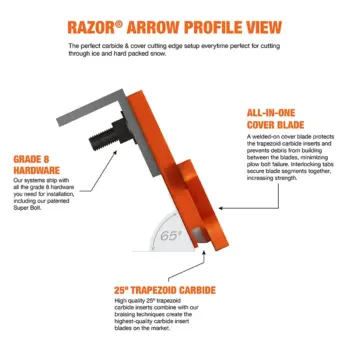

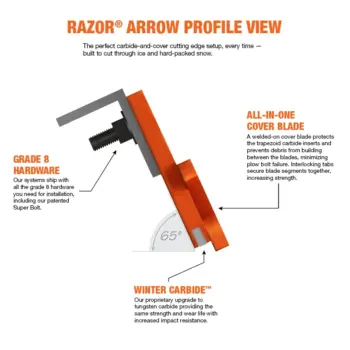

The heart of the Razor® Arrow System is its high-tech, tungsten carbide Razor® cutting edge — a 3/4″ blade with a welded-on, abrasion-resistant (AR) 5/8″ cover plate. It’s the same blade designed for Department of Transportation (DOT) snowplow applications.

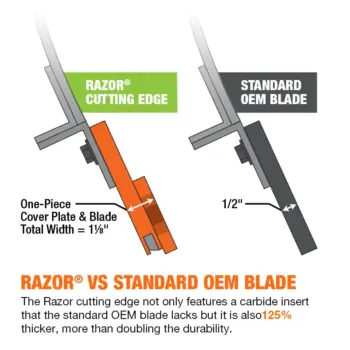

The segmented blade interlocks the left and right halves for extra rigidity. Because the Razor® cutting edge is two sections rather than the one-piece blade supplied by the OEM, it is safer to install and requires less manpower (one person vs. two). The blade totals 1-1/8″ in thickness compared to the factory’s 1/2″ 1098 high-carbon steel blade. That is over double the thickness and durability! The blade also features built-in wear indicators so you know when it’s time to re-order.

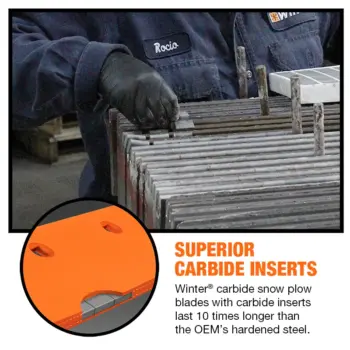

Superior Carbide Inserts

Winter® Carbide lasts 10 times longer than the OEM’s hardened steel for superior wear resistance. The steel portion of the blade holds the carbide insert in place and the welded-on AR steel cover plate shields the carbide from impact.

Winter® Carbide inserts outlast others because of the high quality of our carbide material and the precise tolerances we hold. We also use an advanced induction brazing process to fuse the insert to the steel blade for added strength.

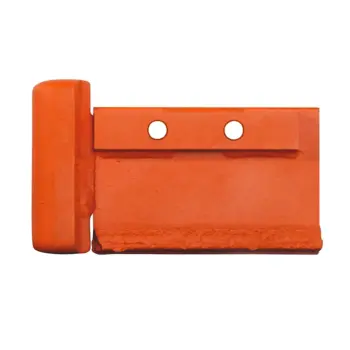

PlowGuard Jr. Guards

The Razor® Arrow System comes with a pair of DOT-rated PlowGuard Jr. guards on each end of the cutting edge. The guards are designed to protect the blade from uneven and premature wear. They also include welded-on curb protection extensions on each end.

The guard is constructed of heavy plate steel with Winter® Impervium® Carbide along the complete length of the bottom edge. Impervium is… Our proprietary weld technology increases impact resistance, ductility and wear life while providing the same high strength as tungsten carbide. The PlowGuard Jr. is available in 6″ and 8″ heights. Contact Winter to fit the guard to the appropriate gauge.



Key Features

  • Stops Premature Wear
    The Razor® Arrow Straight Blade System is your insurance policy against wear and premature failure from impact or operator error.
  • Super-Fast Payback
    Razor® Arrow pays for itself by reducing downtime. It keeps you in the truck clearing snow instead of in the garage replacing the cutting edge. That means you’ll be making money instead of spending it.
  • High-Strength Hardware
    The system comes with Grade 8 bolts and Stover lock nuts that guard against loosening. It’s the same high-quality bolt kit used on Winter® products for municipal plows.

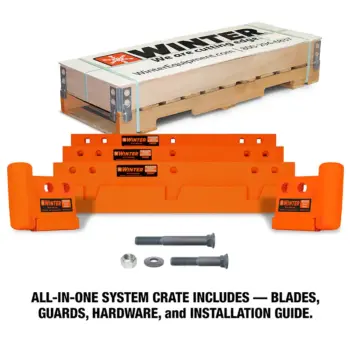

System Includes

  • 2 Razor® Blade Sections (Interlocking)
  • 2 PlowGuard Jr. Guards
  • Grade 8 Hardware



North America’s leading manufacturer of the industry’s highest quality snow plow blades, plow guards, snow plow wear parts, & gravel road maintenance wear parts, Winter Equipment has been at the top for over 30 years. Our unmatched 100% satisfaction guarantee backs our products. That means we will work with you until you are satisfied.

We provide advanced, heavy-duty snow plow blades for various snow removal applications including v-plows, straight plows, expandable plows, backhoes, and graders. The Razor Arrow, Straight Blade System features carbide snow plow cutting edges and PlowGuard Jr. guards, ensuring durability and protection against premature wear. Designed for clearing parking lots, driveways and roadways, the system caters to snowplowing contractors of all sizes across North America. The Razor Arrow System is compatible with loaders, skid steers, and other snow removal equipment making it versatile for different needs. In addition, high-strength hardware such as plow bolts ensure easy blade replacement and reduced downtime. With our focus on efficient snow removal solutions, Winter Equipment offers products designed to meet the needs of various steel snow plow applications and environments.

More time on the road, more time building your business, and less time thinking about your edge. You shouldn’t be spending time changing blades. Instead, spend your time on the things that matter to you.

Razor® Segmented Center Blade

The heart of the Razor® Arrow System is its high-tech, tungsten carbide Razor® cutting edge — a 3/4″ blade with a welded-on, abrasion-resistant (AR) 5/8″ cover plate. It’s the same blade designed for Department of Transportation (DOT) snowplow applications.

The segmented blade interlocks the left and right halves for extra rigidity. Because the Razor® cutting edge is two sections rather than the one-piece blade supplied by the OEM, it is safer to install and requires less manpower (one person vs. two). The blade totals 1-1/8″ in thickness compared to the factory’s 1/2″ 1098 high-carbon steel blade. That is over double the thickness and durability! The blade also features built-in wear indicators so you know when it’s time to re-order.

Superior Carbide Inserts

Winter® Carbide lasts 10 times longer than the OEM’s hardened steel for superior wear resistance. The steel portion of the blade holds the carbide insert in place and the welded-on AR steel cover plate shields the carbide from impact.

Winter® Carbide inserts outlast others because of the high quality of our carbide material and the precise tolerances we hold. We also use an advanced induction brazing process to fuse the insert to the steel blade for added strength.

PlowGuard Jr. Guards

The Razor® Arrow System comes with a pair of DOT-rated PlowGuard Jr. guards on each end of the cutting edge. The guards are designed to protect the blade from uneven and premature wear. They also include welded-on curb protection extensions on each end.

The guard is constructed of heavy plate steel with Winter® Impervium® Carbide along the complete length of the bottom edge. Impervium is… Our proprietary weld technology increases impact resistance, ductility and wear life while providing the same high strength as tungsten carbide. The PlowGuard Jr. is available in 6″ and 8″ heights. Contact Winter to fit the guard to the appropriate gauge.



Key Features

  • Stops Premature Wear
    The Razor® Arrow Straight Blade System is your insurance policy against wear and premature failure from impact or operator error.
  • Super-Fast Payback
    Razor® Arrow pays for itself by reducing downtime. It keeps you in the truck clearing snow instead of in the garage replacing the cutting edge. That means you’ll be making money instead of spending it.
  • High-Strength Hardware
    The system comes with Grade 8 bolts and Stover lock nuts that guard against loosening. It’s the same high-quality bolt kit used on Winter® products for municipal plows.

System Includes

  • 2 Razor® Blade Sections (Interlocking)
  • 2 PlowGuard Jr. Guards
  • Grade 8 Hardware



North America’s leading manufacturer of the industry’s highest quality snow plow blades, plow guards, snow plow wear parts, & gravel road maintenance wear parts, Winter Equipment has been at the top for over 30 years. Our unmatched 100% satisfaction guarantee backs our products. That means we will work with you until you are satisfied.

We provide advanced, heavy-duty snow plow blades for various snow removal applications including v-plows, straight plows, expandable plows, backhoes, and graders. The Razor Arrow, Straight Blade System features carbide snow plow cutting edges and PlowGuard Jr. guards, ensuring durability and protection against premature wear. Designed for clearing parking lots, driveways and roadways, the system caters to snowplowing contractors of all sizes across North America. The Razor Arrow System is compatible with loaders, skid steers, and other snow removal equipment making it versatile for different needs. In addition, high-strength hardware such as plow bolts ensure easy blade replacement and reduced downtime. With our focus on efficient snow removal solutions, Winter Equipment offers products designed to meet the needs of various steel snow plow applications and environments.

More time on the road, more time building your business, and less time thinking about your edge. You shouldn’t be spending time changing blades. Instead, spend your time on the things that matter to you.

Additional information

WeightN/A

Reviews

There are no reviews yet.

Be the first to review “Razor® Arrow Straight Blade System”

Your email address will not be published. Required fields are marked *

Western®
OEM Part #DescriptionDimensions
WES 64775Western® 7.5' PRO PLUS®1/2"x6"x90" 10 Holes punched 2.5"-3"-7"(6)-3"-2.5" for a 5/8" Carriage Bolt at an 1-1/4" gauge
WES 63980Western® PRO PLUS® 8'1/2"x6"x96" 10 Holes punched 2-1/2"-3"-10"-13"(5)-10"-3"-2-1/2" for Slotted Holes at a 1-1/4" gauge
WES 63985Western® PRO PLUS® 8.5'1/2"x6"x102" 10 Holes punched 2-1/2"-3"-13"(7)-3"-2-1/2" for Slotted Holes at an 1-1/4" gauge
WES 66895Western® PRO PLUS® 9'1/2"x6"x108" 10 Holes punched 2-1/2"-3"-16"-13"(5)-16"-3"-2-1/2" for a 5/8" Carriage Bolt at an 1-1/2" gauge
