Pegasus XL® Expandable Plow Cutting Edge System - Winter Equipment Company
Sale!

WEAR FACTOR

10x
Longer than
Steel
Satisfaction Guarantee
Blade life
Steel
Pegasus XL
Save 15% during our Halloween Sale! Oct 17 - Nov 3
$2,205.00 $1,874.25

Features

Delivery icon
  • One Part Number
  • Fastest Delivery Time
Shipping icon
  • FREE Shipping when you buy online
Garage icon
  • Fewer Blade Changes
  • More Time on the Road
Hardware icon
  • Includes Hardware
  • Includes Plow Guards
Labor icon
  • Lower Labor Cost
Injury icon
  • Less Workplace Injury

Information

For Western® WIDE-OUT XL Snowplows

Your expandable plow all-in-one solution. Bringing the technology of Xtendor® Universal Plow Guards and the Razor® blades’ cutting power together. Your satisfaction is guaranteed.

Please read important installation notes in the product details tab below before purchasing.

Fitment Charts Dealer Locator

Description

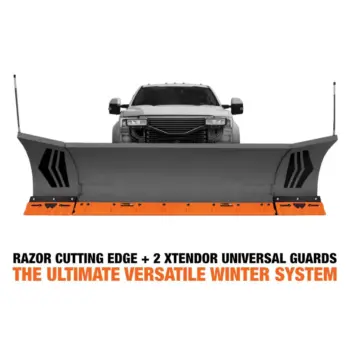

Ultimate Winter System – Heavy-duty Razor® Cutting Edge combined with Xtendor® Universal Plow Guards offers a reliable, high-strength solution.

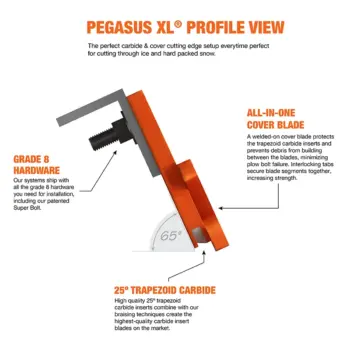

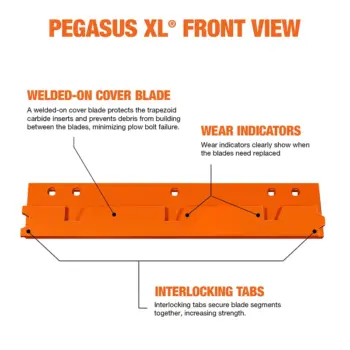

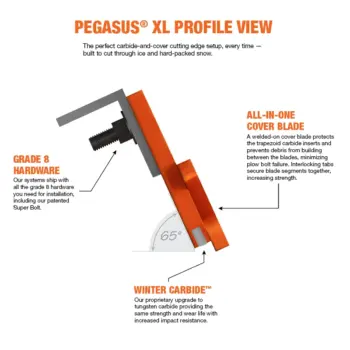

Extended Cutting Edge Wear Life – Razor® Blades with carbide inserts protected by a welded on abrasion resistant 5/8″ cover blade.

Simple Adjustment – Replace or adjust wing edges while the plow is in resting position.

Fits OEM Plows – Fits the Western Wide-Out XL plow.

Also Available – Replacement Pegasus® Wings.

IMPORTANT!
This system requires the use of the OEM steel wing edges. The Xtendor® Universal Plow Guards must be installed over the wing edge. This is performed by either drilling holes into the wing edge and bolting the guard in place or welding the guard to the wing edge.  When reattaching the wing edge, 3 of the included 1/2” washers must be installed behind the wing mounting bolts to space the wing off the moldboard.



Best Used For

  • Roads: Concrete, chip-seal, asphalt
  • Speed: Medium
  • Plow Type: Front, extendable, wing plows
  • Angle of Attack: 70°



Materials Used

  • High-Tech Cutting Edge: Two-piece, welded section, that features a 3/4 blade with an abrasion resistant 5/8″ cover.

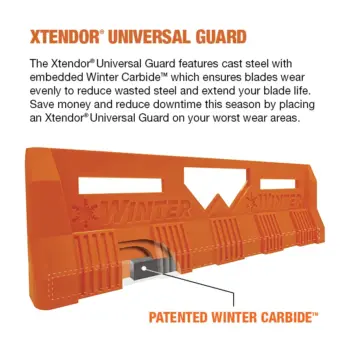

  • Xtendor® Universal Plow Guards ensure wings wear slower and more even.
  • High-Strength Hardware: Reduce loosening over time with Grade 8 Hardware and Stover Lock Nuts.

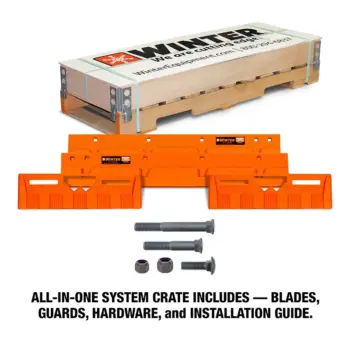

System Includes

  • Two Razor® Cutting Edge Blade Sections (DS, PS)
  • Xtendor® Universal Plow Guards
  • Grade 8 Blade and Wing Hardware

Ultimate Winter System – Heavy-duty Razor® Cutting Edge combined with Xtendor® Universal Plow Guards offers a reliable, high-strength solution.

Extended Cutting Edge Wear Life – Razor® Blades with carbide inserts protected by a welded on abrasion resistant 5/8″ cover blade.

Simple Adjustment – Replace or adjust wing edges while the plow is in resting position.

Fits OEM Plows – Fits the Western Wide-Out XL plow.

Also Available – Replacement Pegasus® Wings.

IMPORTANT!
This system requires the use of the OEM steel wing edges. The Xtendor® Universal Plow Guards must be installed over the wing edge. This is performed by either drilling holes into the wing edge and bolting the guard in place or welding the guard to the wing edge.  When reattaching the wing edge, 3 of the included 1/2” washers must be installed behind the wing mounting bolts to space the wing off the moldboard.



Best Used For

  • Roads: Concrete, chip-seal, asphalt
  • Speed: Medium
  • Plow Type: Front, extendable, wing plows
  • Angle of Attack: 70°



Materials Used

  • High-Tech Cutting Edge: Two-piece, welded section, that features a 3/4 blade with an abrasion resistant 5/8″ cover.
  • Xtendor® Universal Plow Guards ensure wings wear slower and more even.
  • High-Strength Hardware: Reduce loosening over time with Grade 8 Hardware and Stover Lock Nuts.



System Includes

  • Two Razor® Cutting Edge Blade Sections (DS, PS)
  • Xtendor® Universal Plow Guards
  • Grade 8 Blade and Wing Hardware

Additional information

Weight310 lbs
