Description

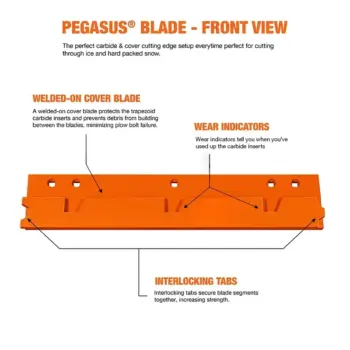

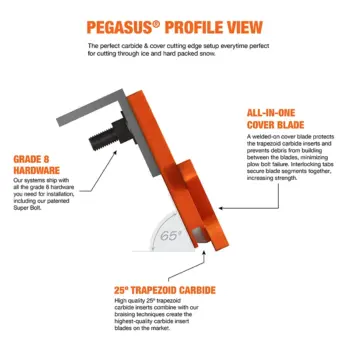

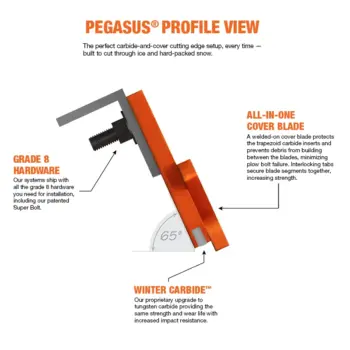

Razor® Segmented Center Blade

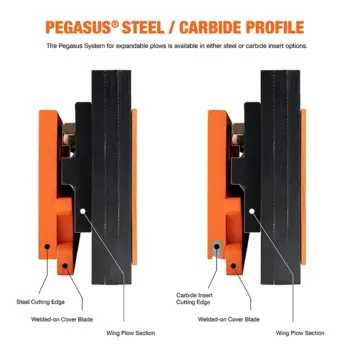

The heart of the Pegasus® System is its high-tech Razor® cutting edge — a 3/4″ blade with a welded-on, abrasion-resistant (AR) 5/8″ cover plate. It is the same cutting edge designed for Department of Transportation (DOT) snow plow applications.

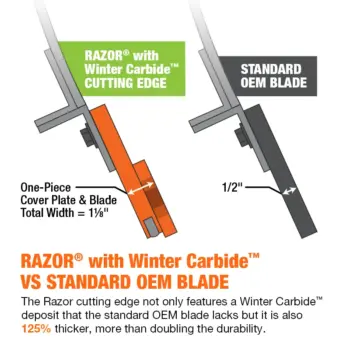

The segmented blade interlocks the left and right halves for extra rigidity. Because the Razor® cutting edge is two sections rather than the OEM’s one-piece blade, it is safer and requires less manpower (one person vs. two) to install. The total blade thickness is 1-1/8″ compared to the factory’s 1/2″ blade. That’s double the thickness and durability!

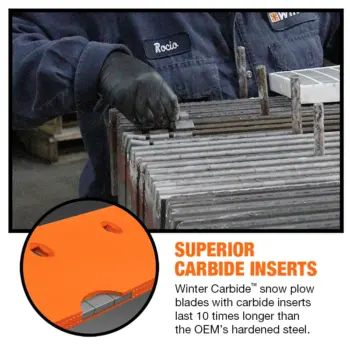

Superior Carbide Inserts
Carbide is more wear-resistant than anything it will encounter. Winter® carbide snow plow blades with carbide inserts last 10 times longer than the OEM’s hardened steel. The steel portion of the blade holds the tungsten carbide insert in place and the cover plate shields the carbide from impact.
Winter® carbide inserts outlast others because of the high quality of our carbide material and the precise tolerances we hold. We also use an advanced induction brazing process to fuse the tungsten carbide insert to the steel blade for added strength.

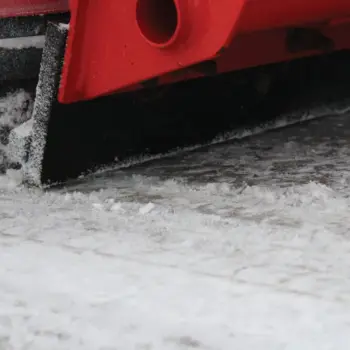

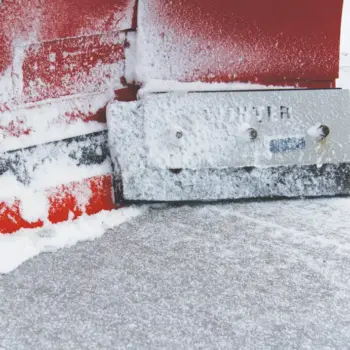

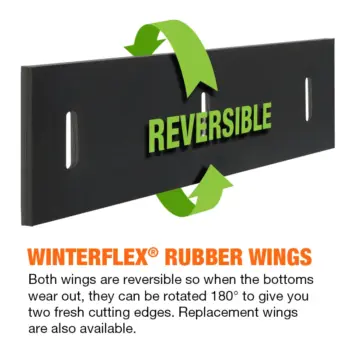

WinterFLEX® Rubber Wings
The WinterFLEX® patented design is similar to a radial tire. It features three layers of styrene-butadiene rubber with a proprietary fabric woven inside. The 1-1/2″ thick material was originally developed for DOT snow plow applications.
Both wings are reversible so when the bottoms wear out, they can be rotated 180° to give you two fresh cutting edges. Replacement wings are also available.
High-Strength Hardware
The Pegasus® system comes with Grade 8 bolts and Stover lock nuts that guard against loosening. It is the same bolt kit used on Winter® products for municipal plows.
Key Features
- Stops Premature Wear
The Pegasus® Expandable System is your insurance policy against wear and premature failure from impact or operator error - Super-Fast Payback
Pegasus® pays for itself by reducing downtime. It keeps you in the truck clearing snow instead of in the garage, replacing the snowplow cutting edge. That means you’ll be making money instead of spending it. - Easier Blade Replacement
Once you’ve installed our adapter plate, you can replace the blade with the plow in its full resting position. It doesn’t even have to be on the truck. You never again have to deal with the factory’s hard-to-reach bolt. That means no hydraulics and less hassle. You can also replace or adjust the wing edges while the plow is in the resting position.

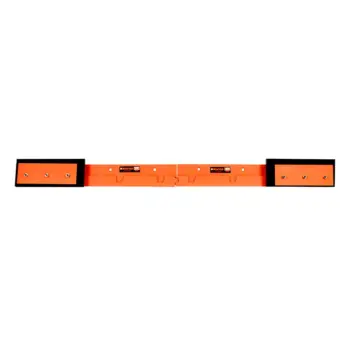

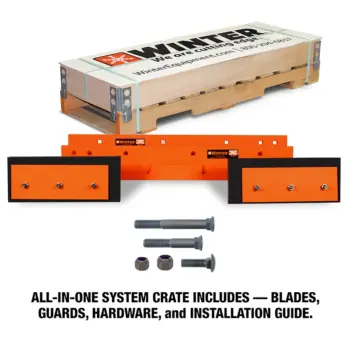

System Includes
- 2 Razor® Blade Sections (DS, PS)
- WinterFLEX® Rubber Wing Kit
- Grade 8 Blade and Wing Hardware

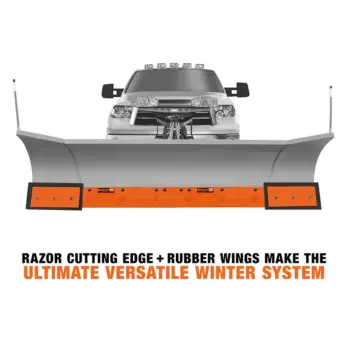

The Pegasus® Expandable Snow Plow Carbide Blade System offers unparalleled performance for snow removal operations in various environments, including parking lots, streets, and other areas requiring efficient snow clearing. Our cutting-edge Razor® blades, durable carbide inserts with high-carbon steel construction, and high-quality WinterFLEX® rubber wings ensure reduced downtime, enhanced wear life, and superior snow-removal capabilities.
Our advanced technology ensures heavy-duty, abrasion-resistant performance, suitable for snow plow trucks. The system accommodates various configurations and is compatible with different OEM models, making it a versatile solution for your snow plow blade needs. By investing in our carbide cutting edges, tungsten carbide inserts, and high-quality steel cutting edges, you will experience increased efficiency and improved blade life even in the most challenging underbody conditions.
Furthermore, our carbide snow plow blades are designed with brazed tungsten carbide inserts, providing additional strength and wear resistance. Using high-quality materials, such as high-carbon steel and carbide-tipped edges, ensures that our products withstand the rigors of heavy snowfall and challenging weather conditions.
With Winter Equipment, you can trust our commitment to providing superior snowplow blade solutions, including carbide insert snowplow blades, steel snowplow blades, rubber snowplow blades and Joma cutting edges, for your snow removal needs. Our dedication to innovation, quality, and customer satisfaction guarantees you the best possible performance and value in the snowplow industry.
